SPECIFICATIONS

Brand Name: Sweetmile

Hign-concerned Chemical: None

Origin: Mainland China

Power Source: AC

Key Features

Build to Last: Made of tempered glass and stainless steel, this product is rust-resistant, wear-resistant, and not easy to deform, ensuring your long-term use.

High Efficiency: The rated power of 6500W and the stainless steel heating element can quickly heat water for about 3 seconds without waiting for too long. In the cold winter, you can quickly enjoy the warmth of hot water.

Stable Operation: This product can operate under water pressure ranging from 0.2 to 0.6 MPa. Even when used in high-rise buildings or during peak water usage periods, it can still work stably.

Safety Guard: The product features anti-dry burning, anti-electric leakage, anti-scalding protection, short-circuit protection, lightning protection, anti-freezing protection, overheat protection, overvoltage protection, self-check upon startup, water and electricity separation, IPX24 waterproof rate, and automatic power-off protection, so you can use it with confidence.

Memory Function: It can remember the settings from the last time you used it, avoiding repeat settings and saving time and effort.

Energy Saving: It only heats water when called unlike a tank heater that maintains water temperature even when not being used, so it can save more thermal energy.

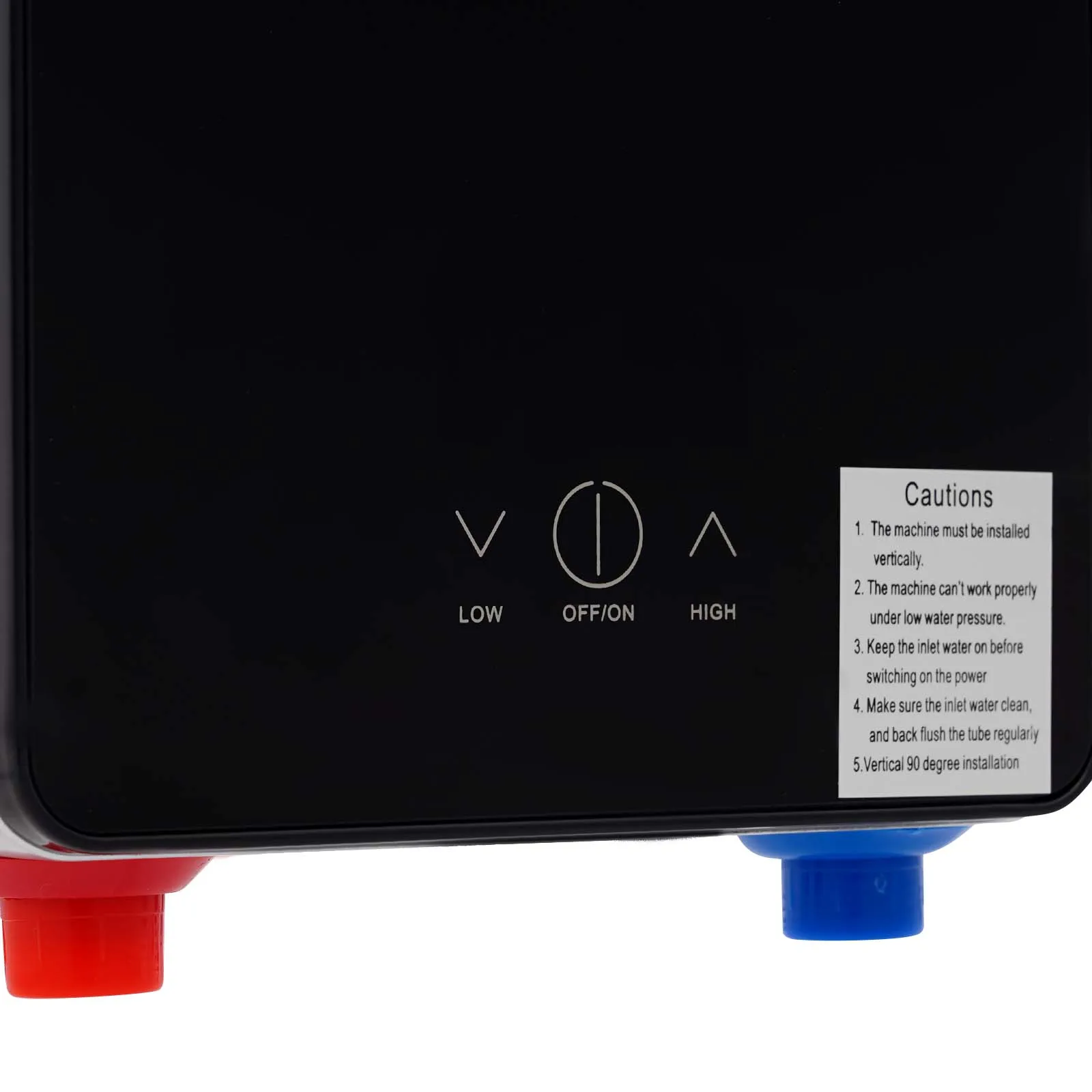

Convenient to Use: The simple control panel with touch buttons and a clear LED display makes it easy for you to operate, and even the elderly can quickly master it. Equipped with intelligent constant temperature technology, the temperature can be adjusted within the range of 86-131℉ to meet your different needs, preventing the water from getting too cold or too hot.

Generous Appearance: The black color tone, smooth surface, and smooth lines give this product a generous appearance, making your home full of fashion atmosphere.

Compact & Space-saving: With its compact size (7.32*2.24*10.91 in), tankless design, and simple structure, you can mount it vertically on the wall without taking up too much space.

Simple Cleaning: The smooth surface and simple structure allow you to quickly clean this product with a towel.

Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is definitely not "we sell and you buy".

Details

Smooth Edges: The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

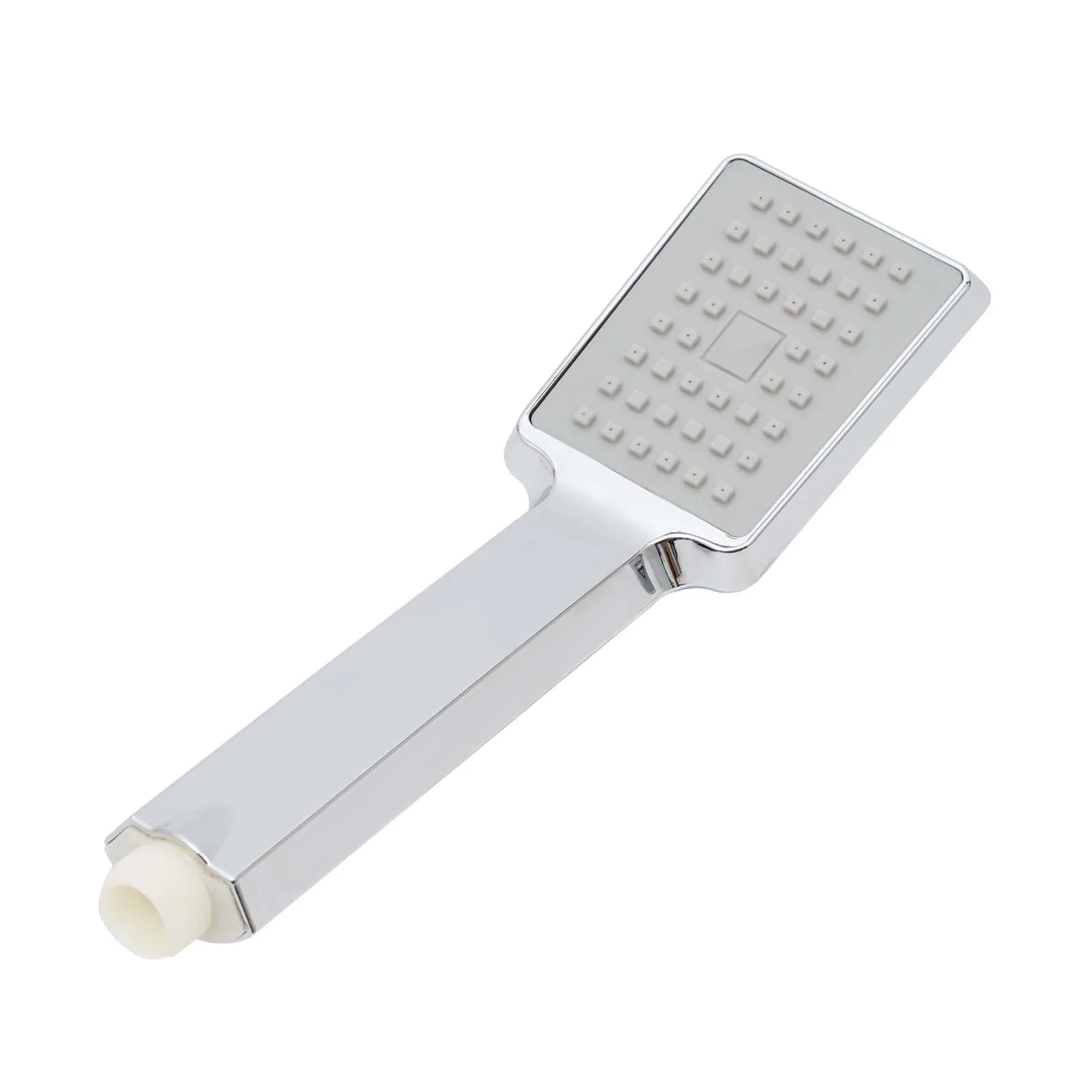

Practical Hand Shower: With it, you can enjoy a comfortable shower experience without having to buy additional ones.

Filter Screen: The water inlet is equipped with a filter screen, which can reduce the entry of impurities. This not only extends the service life of the water heater but also makes the water cleaner and healthier to use.

Application

It is suitable for kitchens, bathrooms, schools, hotels, hospitals, communities, restaurants, hair salons, etc.

Specifications

Color: Black

Style: Modern

Shape: Rectangular

Material: Tempered Glass, Stainless Steel

Assembly Required: Yes

Mount Type: Wall-mounted

Rated Voltage: AC 220V, 50HZ/60HZ

Rated Power: 6500W

Waterproof Grade: IPX24

Display Screen Type: LED

Rated Water Pressure: 0.2Mpa

Applicable Water Pressure: 0.2-0.6MPa

Wire Diameter: ≥2.5 mm/0.1 in

Magnetic Card Meter: 10 (40) A

Mechanical Meter: ≥5 (20) A

Air Switch: ≥29A

Water Temperature: 30-55℃/86-131℉

Starting Water Flow Rate: 1.2-1.5L/40.58-50.73 oz/min

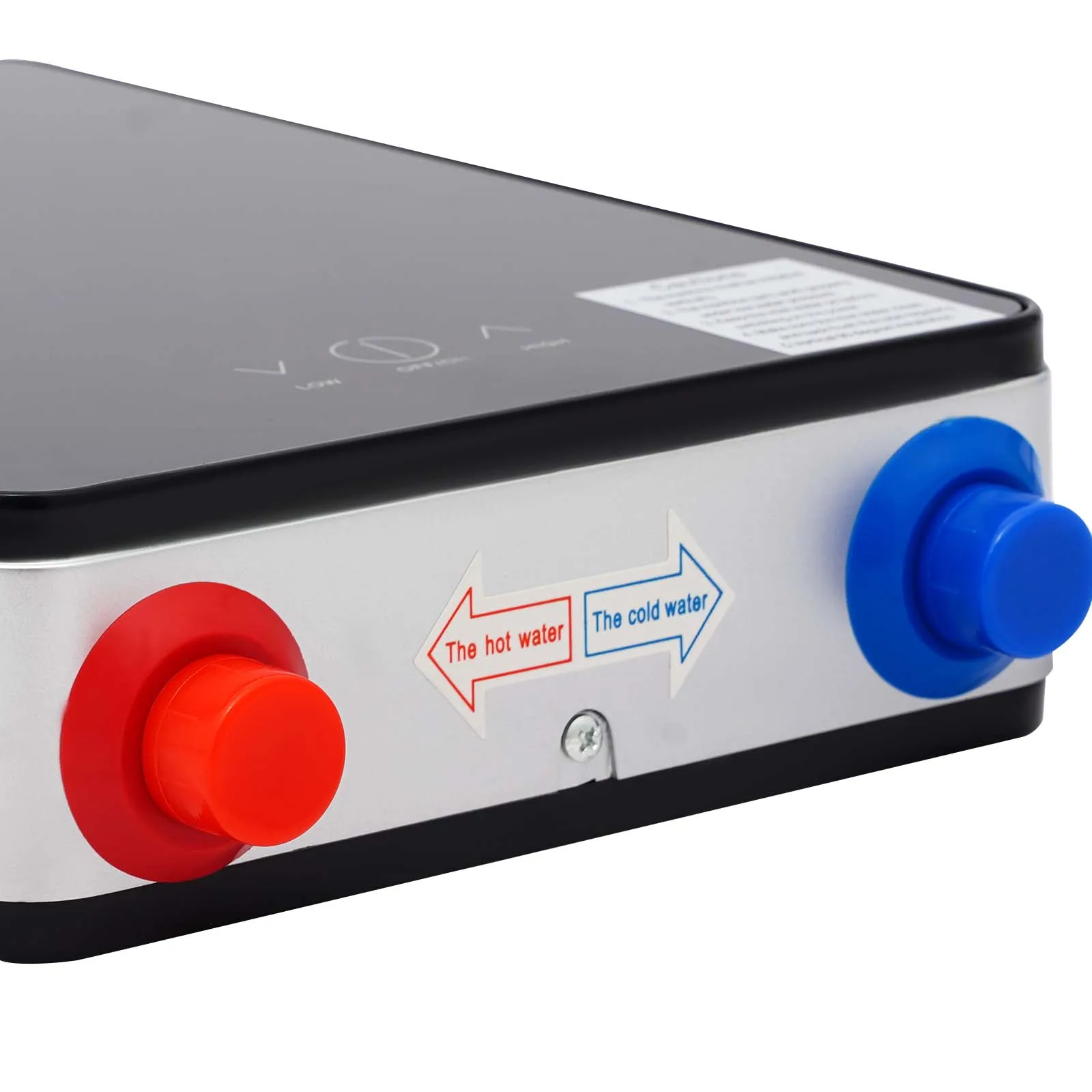

Water Inlet Method: Bottom Water Inlet

Wire Requirements: ≥ 4 mm² Copper Core Wire

Hot Water Outlet Port: Inner Diameter 0.7 cm/0.28 in, Outer Diameter 2 cm/0.79 in

Cold Water Inlet Port: Inner Diameter 1.2 cm/0.47 in, Outer Diameter 2 cm/0.79 in

Product Size: 18.6*5.7*27.7cm/7.32*2.24*10.91 in

Package Size: 43*13*28cm/16.93*5.12*11.02 in

Gross Weight: 2.18 kg/4.8 lbs

Net Weight: 2.07 kg/4.56 lbs

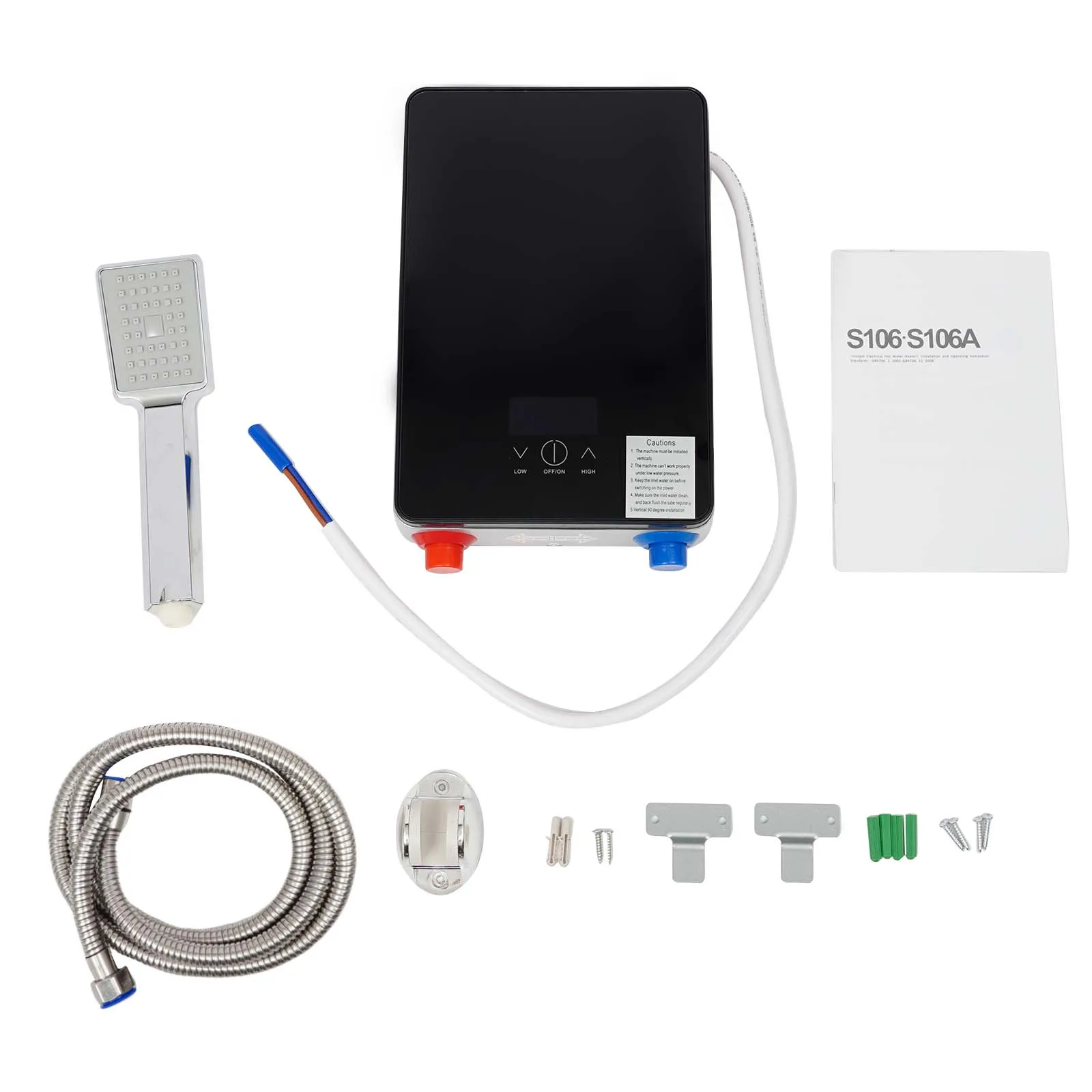

Package Included

1* Electric Water Heater

1* Hand Shower

1* Hand Shower Holder

1* Hose

1* English Manual

All Accessories for Assembly

Notes

1. Please read the manual and label completely before use, and pay particular attention to the safety instructions included. We recommend professional installation.

2. Before purchasing, please make sure that the size of this product is suitable for your home.

3. The water heater must be equipped with a grounding electrode and a leakage protection device (not included).

4. Before powering on, the water source must be connected first.

5. It is strictly prohibited to heat the water heater when there is no water or it is frozen. Do not use this product when the temperature is below 32℉.

6. Please test the water temperature with your hand before use to avoid scalding.

7. After the water heater has been used for some time, water quality problems may occur, resulting in uneven heating and easy damage to the main board. If you do not use it for a long time, it is recommended to rinse it before using it again.

8. If the local temperature is relatively low and the water flow rate is large, the water temperature can only rise to a certain level.

9. The water provided by this product is not recommended for direct consumption.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
